Introduction

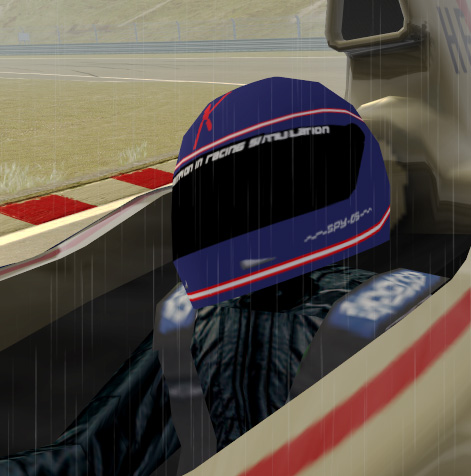

Racer supports separate (moving) helmets & pilot bodies since v0.7.4. These shake as the car accelerates. The amount of shaking is currently hardcoded (v0.7.4). An example is shown below.

Modeling

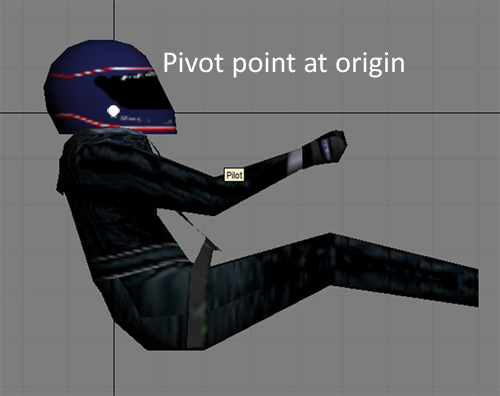

There are some rules when modeling helmets in your 3D editor. The pivot point of the helmet should be located at the origin (see the image below). Also model your pilot body along with the helmet, so it doesn't have to be offset with respect to the helmet. Export separate objects for the helmet and pilotbody (for example: helmet.dof and pilotbody.dof).

Putting the model to use in Racer

You have to edit the car's car.ini file a bit to get the models recognized.

Field Description
pilot.helmet.model A model description for the helmet.
pilot.helmet.pos An offset to place the helmet. This value is also used to offset the pilot body.
pilot.body.model

The pilot body model. Currently this means the entire body (legs/chest/arms) without the head. If you need to move the pilot model with respect to the car, use the model's transformation possibilities, for example: pilot.body.model.offset.y=0.5 to move the 3D model up half a meter.

An example extract from a car.ini file that places the helmet with a vertical offset of 2 cm:

pilot
{
  helmet
  {
    model
    {
      file=helmet.dof
    }
    pos=0 0.02 0
  }
  body
  {
    model
    {
      file=pilotbody.dof
    }
  }
}
